Any recommendations for a 2 channel stereo mixer?

I want a really small super basic mixer.

The "micro mixer" is still 4 channels input.
If I make one in Modular it'll have four outputs.

All I want is two stereo inputs and one stereo output.

(Why small? I'm trying to keep my routing window tidy and save MIPS)

Funny. I was just browsing the small modular mixers today, but I didn't find what I needed: A tiny modular stereo output mixer with an input for each channel's "CV" controlled balance/pan. I.e. I don't need a pot for balance/pan control but the option to modulate/automate it.

Maybe what you're looking for is something like the St Mix 2: http://cwmodular.org/mixgain-mix.html ?

I managed to do a workaround, covering my needs with a couple of VCAs, a CV controlling VCA-left and an offset inverted copy of that CV controlling VCA-right, but if you or anyone else could build and share a tiny stereo output mixer with balance/pan modulation, I would be grateful.

Try with frequency modulators. These apply strong modulation to the signals. I think they are named pitch modulators in the modular

Thanks. I did a search on modulators and found the panMod here http://cwmodular.org/mix-modulator.html.
This seems to cover my panning modulation needs. I will try to use it in my patch tomorrow.

yes the panmod is the one.

if you use the pitch modulator i suggested leave headroom with an attenuator and see you signal on an oscilloscope. It does good amplitude modulation

Here are two things you may want to look at:

Wavelength Mixmaster should be small enough that if it loads earlier in your project it won't overlap DSPs it's in "Wavelength_Synths-BestOfRepack-072520.rar" (attached to this post) under \Wavelength Synthesizers Best of Repack 250720\Wavelenght SC7 must be install in Mixer folder\Mixer Wavelenght\ note there are also two older versions of SpaceF's Vectopr mixer in that same subfolder.

A simple download is "Wavelength Free Bundle Part 4.zip" which also has the same exact version of the Wavelength Mixer (also attached to this post).

I would defer to SpaceF to go beyond what is in these zipfiles at this point, his mixers are quite capable.

Thanks Valis. The panMod was exactly what I needed, but I'll check the Wavelength stuff out later. I haven't used my Spacef Modular Mixers in quite a while, but I may have a look there too.

In the modular Mixers, the "MB" might be helpful, but not exactly tiny. There are also some "mergers" which are extremely tiny mixers if the output master gain is not needed. May be too tiny (they are made to merge signals before an effect).... None has pan modulation (it would require adding internal LFOs etc and I have a tendancy to overstuff this kind of devices with tons of modulators, so at the end they are not light at all anymore, eventhough it starts with good intentions

I started a tutorial for making a tiny mixer based on this thread but lost the recording (deleted by error). I think I still have the device in the pipes... what are the specifications ? I could try to finish it, re-record a tut... (I make no promisses though because i must concentrate on other stuff).

asktoby wrote: Sun Jan 19, 2025 6:58 am
All I want is two stereo inputs and one stereo output.

(Why small? I'm trying to keep my routing window tidy and save MIPS)

Hi There,
I have been working for a while now to produce mixers with minimum screen footprints,
I am in the middle of developing a number of mixers to meet this need.

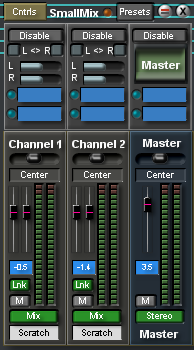

Here is the most basic one that should meet your need.
Press the 'Cntrls' button to get access to extra controls and to add Fxs.
I have not done a lot of testing as yet, so if there are any issues with the mixer please let me know.
regards
maus

Thank you Maus,- these look great !
Would it be possible to get 3 or 4 stereo input channels ?

best,- Bud

Bud Weiser wrote: Thu Aug 14, 2025 8:20 am Thank you Maus,- these look great !
Would it be possible to get 3 or 4 stereo input channels ?

best,- Bud

Hey Bud,

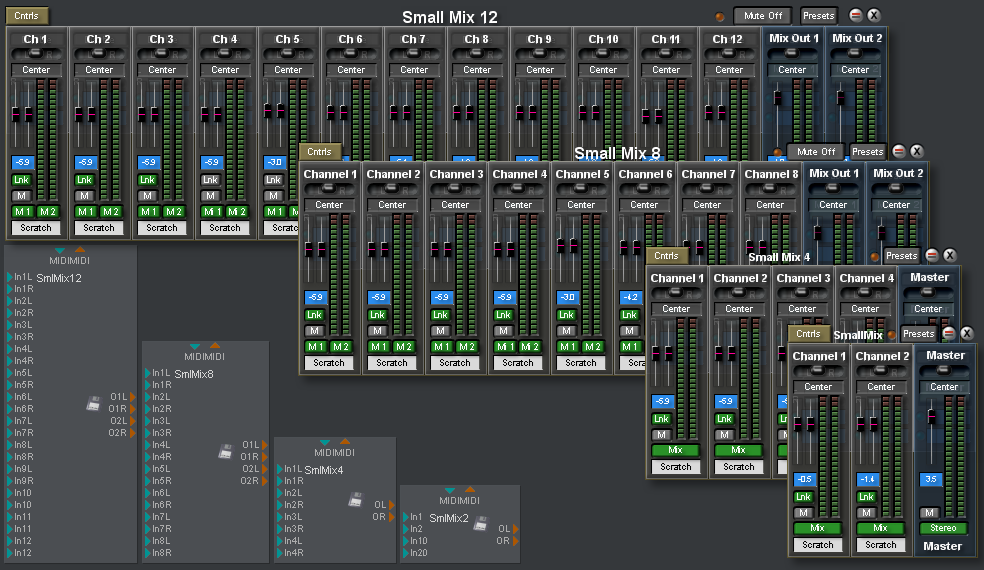

I am building a family of these mixers 2, 4, 8 ,12 and 16 stereo channel models.
Most are done, still working on the 16 channel version.
Also have not really tested them as yet.
regards
maus

How are they for phase lock on the PCI cards?

valis wrote: Thu Aug 14, 2025 6:11 pm How are they for phase lock on the PCI cards?

Unknown at this stage.
Haven't tested them for phase locking, sorry.
I am about to release the first versions, maybe someone can check on phase issues?
regards
maus

mausmuso wrote: Thu Aug 14, 2025 2:01 pm
Hey Bud,
I am building a family of these mixers 2, 4, 8 ,12 and 16 stereo channel models.
Most are done, still working on the 16 channel version.
Also have not really tested them as yet.
regards
maus

Hello Maus !

At a 1st glance, 3 - 4 channels would be good for me.
Currently I´m using "Mix3S" (see attachment) for summing of 2 small mixers and WAVE Out in my latest XITE project.
It works, but your new creation is more advanced in regards of control.
Meanwhile I went away from using a single big mixer.
"phase lock" on PCI would be great too but I guess it´s no biggie on my XITE-1 once the device is manually assigned to a dedicated DSP.
I´d don´t use for tracking/mixing,- instead I´m using for my hardware keyboards (A16U/ STM1632X), Scope synths and VSTis (ASIO 2 Ch.) on Scope MicroMixer,- and media player (WAVE).
That´s 3 stereo channels input for the summing mixer,- and when I´d use VST (ASIO) separately,- I´d need four channels.

So, I can´t wait trying a 4 stereo-channel version in my project !



Bud

How tested are the current versions given above (Mix2)? I'll check phase.

valis wrote: Fri Aug 15, 2025 8:46 am How tested are the current versions given above (Mix2)? I'll check phase.

I have run all mixers and tested most functions (controls, inserts, channel disabling, midi, presets, etc).
I don't think I missed anything but you never know.
Look forward to phase checking.
Thanks
maus

Hello Maus !

The 4 channel version doesn´t work well on my laptop,- Win 10 Pro x64, latest build, update, latest runtimes etc..
There are graphic issues in the top row of the mixer (Cntrls / SmallMIx / LED / Presets).
I´m unable to grab it there and move inside Scope environment.
Instead it results in weird graphics when I click on it in that region.
I´ll come back to you w/ pics ...

Next issue is the input levels which I compared to the project I use the SpaceF Mix3 device for summing 3 stereo sources (see above post).
I´m using -3dB "Gain Input" w/ Mix3 for each of the 3 stereo signal pairs and get proper distortion free levels at the output.

With the SmallMix 4 and an input gain @ 0dB,- there´s almost nothing at the output.
I´ll try to make pics too.

This is just only pre-info and maybe you might have time to investigate.

I used SmallMix 4 in the same project and just only replacing SpaceF´s Mix3 and I only tried to compensate levels w/ the faders on SmallMix 4.
So, I didn´t change anything gain stageing w/ the other devices in the project.



Bud

Hi Bud,
Yes I have seen these issues too, just haven't got around t investigating them as yet.
I will have a closer look when I get a chance.
The gains are definitely not right!
The graphic thing happened to me as well, but only once.
I built them that way so the schublades hide properly whilst still leaving the top level controls (presets, etc) visible. I know it stops you from grabbing these devices by the top section of the graphics.
I will have a look at changing the layout so they work better.
Thanks for the feedback.
regards
maus

Hello Maus !

I guess, since you know about the issues, there aren´t any screenshots necessary anymore,- right?
"schublades" is a nice new english term ...
Are you german/ located in germany?
(via PM können wir auch deutsch sprechen ... )

I´ll be patient in the hope for an update now.

best



Bud

Hello Maus !

The updated tiny 4 channel mixer works better,- but I still lose level compared to SpaceF Mix3S (w/ -3dB input gain) and the S|C micro mixer.
I still have to crank up the master fader more than the channel input faders,- also when these are @default levels.
The meter scaling seems to be wrong too and they should work like the meters in S|C mixers do.
P.ex. when I set the faders to 0dB or less,- there´s barely level at the stereo out and in the analyzer/level meter I use between SmallMix4 and the XITE main output.
Otherwise, everything works and the graphics issue (top of device) is gone.

Here´s the general level meter stuff from Scopev5 micro mixer manual:

I´d like to get this right, last but not least because DSP assignment/ASync on XITE is better w/ the same project and compared to SpaceF´s Mix3S.

I now hope I´m no too picky ...

And,- I´ll check the stereo switchers later.

best



Bud
