64 steps basic seq. structure( M III+FleXor)

alfonso · Post by **alfonso** » Tue Nov 18, 2003 9:42 pm

http://www.scopeusers.com/Pulsar/files/modular/64steps.zip

Type: Sequencer Section.

Pulsar Version: SFP 3.1

Requires: M III and FleXor

Hello,

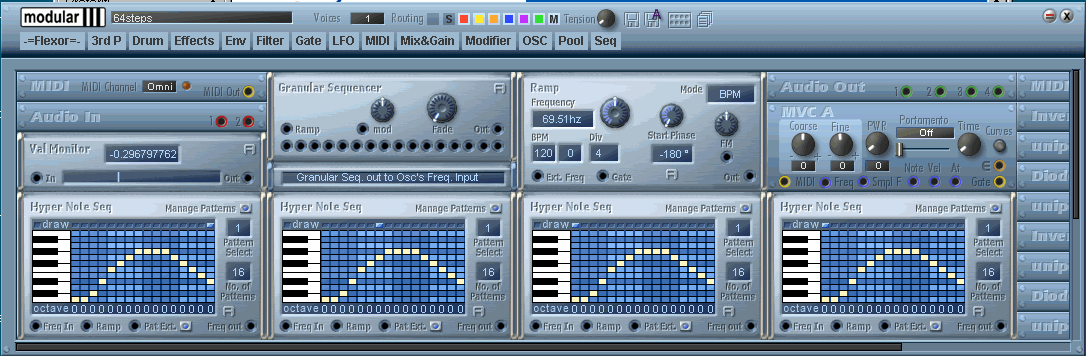

This patch consists only of the note sequencer part, ready to be completed with your choice of oscillators, filters etc.

It derivates 4 consecutive ramps from FleXor ramp, with some math operations.

The Note seq.'s outs are connected each one on 4 inputs of the Granular seq. hooked to the "mother" ramp, that collects them in a single out for the oscillator(s).

You can connect also other flexor ramped modules, in parallel with the Hyper Note Seqs. Controllers can be mixed in a mixer.

MVC gate out is shortcut with e-sync, if you use stock CW envelopes connect them to e-sync instead.

A Value Monitor shows the progression of the mother ramp. If you don't need it you can delete it.

I hope you like it.

roy thinnes · Post by **roy thinnes** » Mon Nov 24, 2003 7:08 pm

indeed I liked it!since the Adern seq stuff is so tight, I myself liked to make a 64seq but soon run into problems with sharing the out frequency of the ramp module for the 4 note seq modules.never thought of the granular sequencer...
But one thing I can't get to work is the integration of gate seq modules in this 64step sequencer.how can I mix the gate outs together - say, to link it with an ADSR?

alfonso · Post by **alfonso** » Tue Nov 25, 2003 1:19 pm

M III has gate logic modules, load 3 of them, set them at "OR" and connect the two first gate seq.s to the first logic module, then add the third seq. with the previous logic module and so on with the fourth. at the end you should have all the gates in sequence.

at0m · Post by **at0m** » Wed Nov 26, 2003 1:01 am

To mix HGS Gate Sequencer gates, I tried Add2/4, Mix2/4 with max levels, Gate Logic too... but none worked, always some steps were skipped. Finally I found a way, just like Alfonso does it in the patch: with a Granular Sequencer

alfonso · Post by **alfonso** » Wed Nov 26, 2003 4:07 am

Yes, indeed, envelopes don't seem to restart properly from the gate logic...but I think that the problem is between H. Gate seq and the gate logic modules....Granular Seq. is a great tool though!

<font size=-1>[ This Message was edited by: alfonso on 2003-11-26 04:08 ]</font>

roy thinnes · Post by **roy thinnes** » Thu Nov 27, 2003 7:51 pm

since adsr does not accept the granular seq as a gate signal, I've put a dc adder modul in between.seems ok now!
