One VU 16Ch Mixer

Post by mausmuso »

Hi There,
I have been working on this for quite some time.
its a basic 16Ch mixer, with Channel tracking linked to Fader movement.

I was looking to create a small foot print mixer that tracks what the user is doing with regards to fader adjustments.
It might be useful in a live situation where you tickle a fader and immediately you have access to all the controls for that channel.

I am sorry but this is only likely to work on XITE.
I am still struggling to optimise my circuits. Hope to get better at that as time goes on.

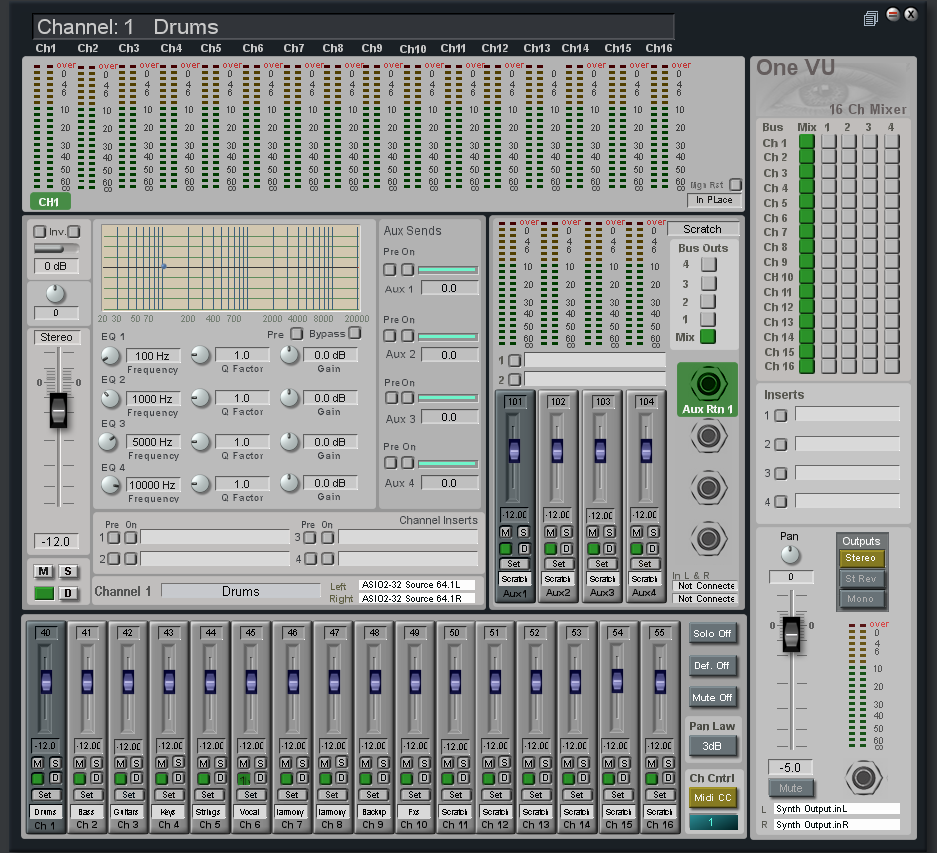

OneVu Mixer.png
OneVu Mixer.png (158 KiB) Viewed 4599 times
Iam still testing but I think everything works as expected.
Happy to take any feedback
Have a great xmas
regards
maus
OneVU Mixer.zip
(6.09 MiB) Downloaded 180 times
User avatar
roy thinnes
Posts: 651
Joined: Thu Jan 09, 2003 4:00 pm
Location: Graz
Contact:

Re: One VU 16Ch Mixer

Post by roy thinnes »

Hi Maus,
Mixer looks terrific!
Unfortunately Scope crashes when I try to load it in Scope 5.1, so it's really just for Xite people I'm afraid.
mausmuso
Posts: 521
Joined: Wed Apr 25, 2001 4:00 pm

Re: One VU 16Ch Mixer

Post by mausmuso »

roy thinnes wrote: Tue Dec 18, 2018 12:26 am Hi Maus,
Mixer looks terrific!
Unfortunately Scope crashes when I try to load it in Scope 5.1, so it's really just for Xite people I'm afraid.
I'm really sorry about that.
I struggled to optimize the whole thing, which probably would have given it life in the PCI world.
I intended to make 24 channel version, but unless I can work around the optimization issue it will probably never see the light of day.
sorry again
maus
User avatar
faxinadu
Posts: 1602
Joined: Wed Nov 01, 2006 3:12 am
Location: israel
Contact:

Re: One VU 16Ch Mixer

Post by faxinadu »

crazy man, fantastic job, pci here too but this looks great
Scope, Android, Web, PC Plugins and Sounds:
http://www.oceanswift.net
Music
https://faxinadu.bandcamp.com/
User avatar
yayajohn
Posts: 1694
Joined: Thu Mar 01, 2007 5:01 pm
Location: Everywhere....Nowhere

Re: One VU 16Ch Mixer

Post by yayajohn »

Really nice mixer Maus! Everything all in one place and auto channel switching is very handy.
It looks like it is spread btwn DSP 12 and 16.
The only thing I can't figure out is how to apply the 2 internal AUX inserts.

Thanks for sharing your hard work on this.

Dan
jksuperstar
Posts: 1638
Joined: Mon Nov 15, 2010 12:57 pm

Re: One VU 16Ch Mixer

Post by jksuperstar »

This looks great! I know you had looked or asked about having a section of mixer controls statically midi-mapped but dynamically controlling selectable mixer channels...did you succeed here?

(I'll test later, but thought I'd ask about the design's intent)
mausmuso
Posts: 521
Joined: Wed Apr 25, 2001 4:00 pm

Re: One VU 16Ch Mixer

Post by mausmuso »

jksuperstar wrote: Tue Dec 18, 2018 8:39 am This looks great! I know you had looked or asked about having a section of mixer controls statically midi-mapped but dynamically controlling selectable mixer channels...did you succeed here?

(I'll test later, but thought I'd ask about the design's intent)
Hi JK,
Yes the midi selectivity works.
It took some time to figure out how to get around some of the midi 'forget' issues, but it seems to work ok now.
regards
maus
mausmuso
Posts: 521
Joined: Wed Apr 25, 2001 4:00 pm

Re: One VU 16Ch Mixer

Post by mausmuso »

yayajohn wrote: Tue Dec 18, 2018 8:27 am Really nice mixer Maus! Everything all in one place and auto channel switching is very handy.
It looks like it is spread btwn DSP 12 and 16.
The only thing I can't figure out is how to apply the 2 internal AUX inserts.

Thanks for sharing your hard work on this.

Dan
Hi Dan,
I am not exactly sure what you are asking, but you can connect the Aux sends to some source by clicking on them and selecting the required connection from the project's devices listed.

The mixer does spread across a number of DSP. I tried to it with DSP 7, 11 and 15.
I was worried there might be some phase issues.
I need to do t\some more testing to ensure I haven't introduced any undesirable phase issues.
Regards
maus
User avatar
yayajohn
Posts: 1694
Joined: Thu Mar 01, 2007 5:01 pm
Location: Everywhere....Nowhere

Re: One VU 16Ch Mixer

Post by yayajohn »

The 2 inserts located above the AUX faders? I guess i'm a little confused as to their purpose.

The mixer resisted being assigned to any other DSP when I tried, I will test some more to be sure.
mausmuso
Posts: 521
Joined: Wed Apr 25, 2001 4:00 pm

Re: One VU 16Ch Mixer

Post by mausmuso »

yayajohn wrote: Tue Dec 18, 2018 6:42 pm The 2 inserts located above the AUX faders? I guess i'm a little confused as to their purpose.

The mixer resisted being assigned to any other DSP when I tried, I will test some more to be sure.
Ahh yes, each auxiliary return has two inserts.

Only the 2 inserts for the current selected Aux Channel are shown.
If you move another Aux Return Fader then you will be seeing the 2 inserts for that channel and so forth.
Its the same for the Aux Bus Outs.
You can only see the bus outs for the current selected channel.
I hope this explains it?
maus
User avatar
yayajohn
Posts: 1694
Joined: Thu Mar 01, 2007 5:01 pm
Location: Everywhere....Nowhere

Re: One VU 16Ch Mixer

Post by yayajohn »

ok, thank you maus that clears it up.
